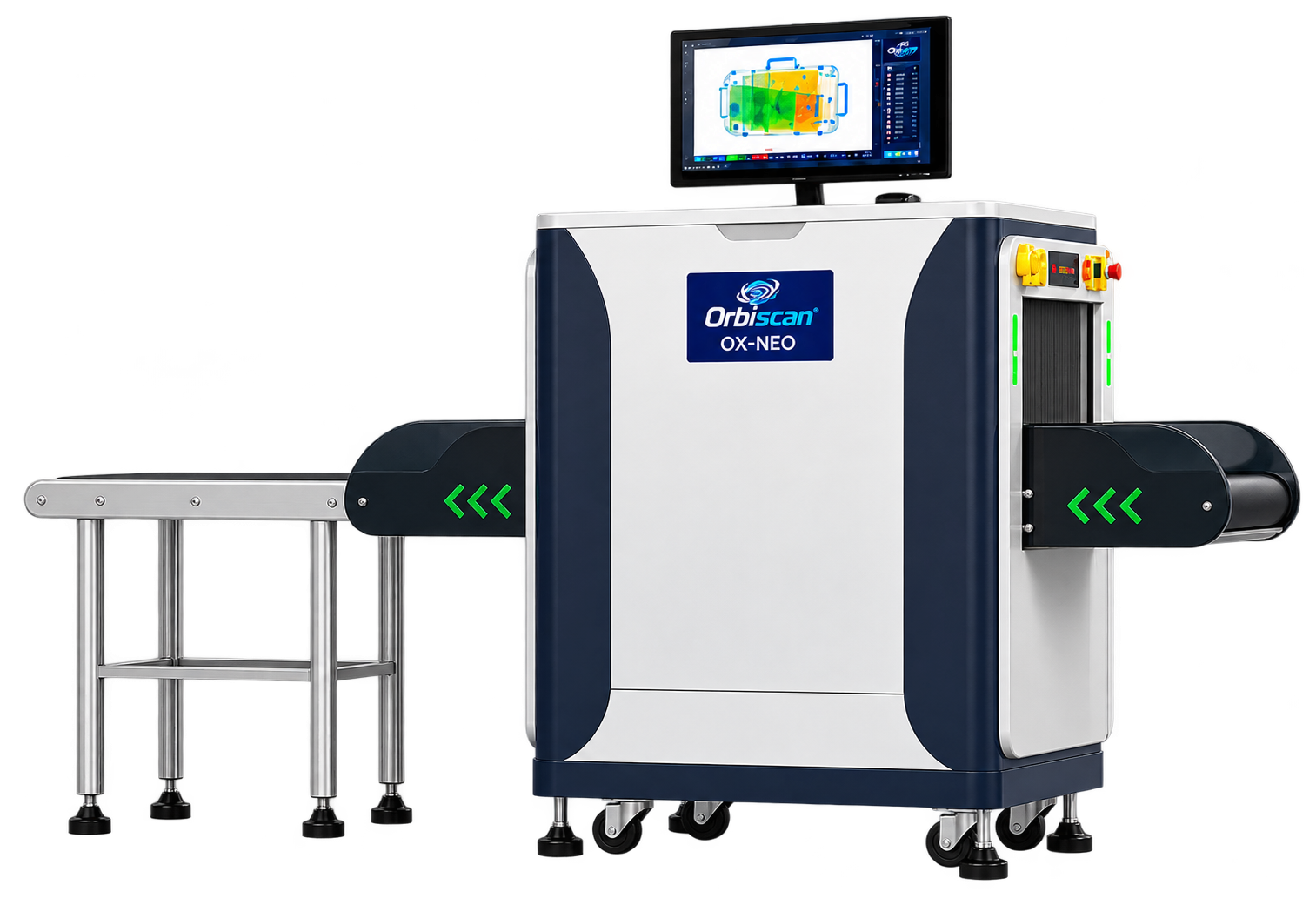

Orbiscan OX-NEO X-ray Inspection System

Advanced X-ray Security Screening

The Orbiscan OX-NEO is a professional X-ray inspection system designed to support reliable security screening in high-traffic and security-sensitive environments. It combines advanced X-ray imaging, intuitive operation, bidirectional scanning, and image enhancement capabilities for inspecting bags, parcels, documents, and personal belongings.

Its 500 × 300 mm inspection tunnel, adjustable X-ray generator, and image management tools support a range of security inspection requirements. Optional CCTV monitoring and camera integration are available for additional operational visibility.

Key Features and Benefits

Advanced X-ray Imaging

The system uses advanced X-ray imaging software with image enhancement options, organic and inorganic material display, and multiple image viewing controls.

500 × 300 mm Inspection Tunnel

The inspection tunnel is designed for screening mail, documents, parcels, bags, and small packages within the specified tunnel dimensions.

Adjustable X-ray Generator

The X-ray generator supports tube voltage options of 100 kV, 140 kV, and 160 kV, with adjustable tube current from 0.2 to 1.2 mA.

Bidirectional Scanning

Bidirectional scanning allows items to be inspected in either conveyor direction, supporting flexible screening workflows.

Image Enhancement and Management

The system provides seven-color imaging, 4096 grey levels, a 64× adjustable zoom preview window, and image enhancement modes for high, low, and super penetration.

Image Storage and Review

The brochure specifies support for more than 500,000 images for back/forward review, along with image recall, storage, counters, and data/time display.

Optional Monitoring and Connectivity

Optional Hikvision NVR/camera integration and real-time CCTV monitoring are available. SDK integration, platform SDK, ISB image export, and customized interface and branding options are also listed.

Technical Specifications

Specification	Details
Model	OX-NEO
Product Type	X-ray Inspection System
Tunnel Size	500 × 300 mm (W × H)
Product Dimensions	1765 × 800 × 1180 mm
Package Dimensions	1865 × 850 × 1330 mm
Net Weight	280 kg
Gross Weight	330 kg
Power Consumption	Less than 0.5 kW
Power Supply	110–240 VAC, 50/60 ± 3 Hz
Operating Temperature	-20°C to +60°C
Storage Temperature	-30°C to +70°C
Humidity	5%–95%, non-condensing
X-ray Tube Head	Self-contained
Tube Voltage	100 / 140 / 160 kV
Tube Current	0.2–1.2 mA, adjustable
Cooling	Sealed oil and forced-air cooling
Beam Direction	Diagonal from bottom, 80° beam
X-ray Leakage Dose	≤1 μGy/h, measured at 5 cm
Array Detector	L-type photodiode detector array
Noise Level	Less than 55 dB
Maximum Load Weight	150 kg (330 lbs)
Conveyor Speed	Approximately 0.22 m/s
Steel Penetration	13–38 mm; 15–40 mm typical
Conveyor Height	720 mm, including support tray
Wire Resolution	40 AWG (0.0787 mm); 38 AWG typical
Spatial Resolution	Horizontal Φ 1.0 mm; vertical Φ 1.0 mm
Operating System	Windows 7 English version, as stated in brochure
Image Storage Capacity	64 GB standard; up to 2 TB optional
Display	19-inch Philips monitor, 1280 × 1024
Graphics Memory	256 MB
Computer Host	HESHO brand, Taiwan
NVR / Camera	Hikvision, optional
Entry and Exit Rollers	304 stainless steel, optional
Optional Roller Length	0.6 m at entry and exit

Imaging and Software Features

• Advanced X-ray imaging software
• Seven-color imaging with 4096 grey levels
• Adjustable 64× zoom preview window
• High, low, and super penetration image enhancement
• Organic and inorganic material display
• Image zoom and data/time display
• Counters, image recall, and storage
• User, image, and log management
• Image marking and diagnostics
• Main-screen operation and processing tools
• Custom operator workflow functions

Hardware and Optional Configurations

Available configurations and options listed in the brochure include:

• Two-sided, energy-saving smart rollers
• Bidirectional scanning
• Optional 304 stainless steel entry and exit rollers
• Optional Hikvision NVR/camera
• Optional real-time CCTV monitoring
• Standard 64 GB disk capacity, expandable up to 2 TB
• 19-inch Philips monitor
• Customized panel, interface, and branding
• SDK integration and platform SDK
• ISB image export
• Custom language support

Applications

Mail and Parcel Screening

Inspection of mail, documents, parcels, and small packages.

Executive Office Security

Screening of bags, parcels, and personal belongings at corporate facilities.

VIP and Diplomatic Security

Inspection of carried items at reception areas and controlled-access locations.

Public Area Security

Screening of bags and carried items in public facilities and high-traffic areas.

High-Risk Event Security

Inspection of bags and personal belongings at events, conferences, and secure venues.

Why Choose the Orbiscan OX-NEO?

The Orbiscan OX-NEO combines X-ray inspection, image enhancement, bidirectional scanning, and flexible configuration options in a professional security screening system. Its specifications and optional accessories support deployment across mailrooms, corporate facilities, public areas, and event security checkpoints.

Contact Orbiscan for pricing, product availability, and configuration details.
