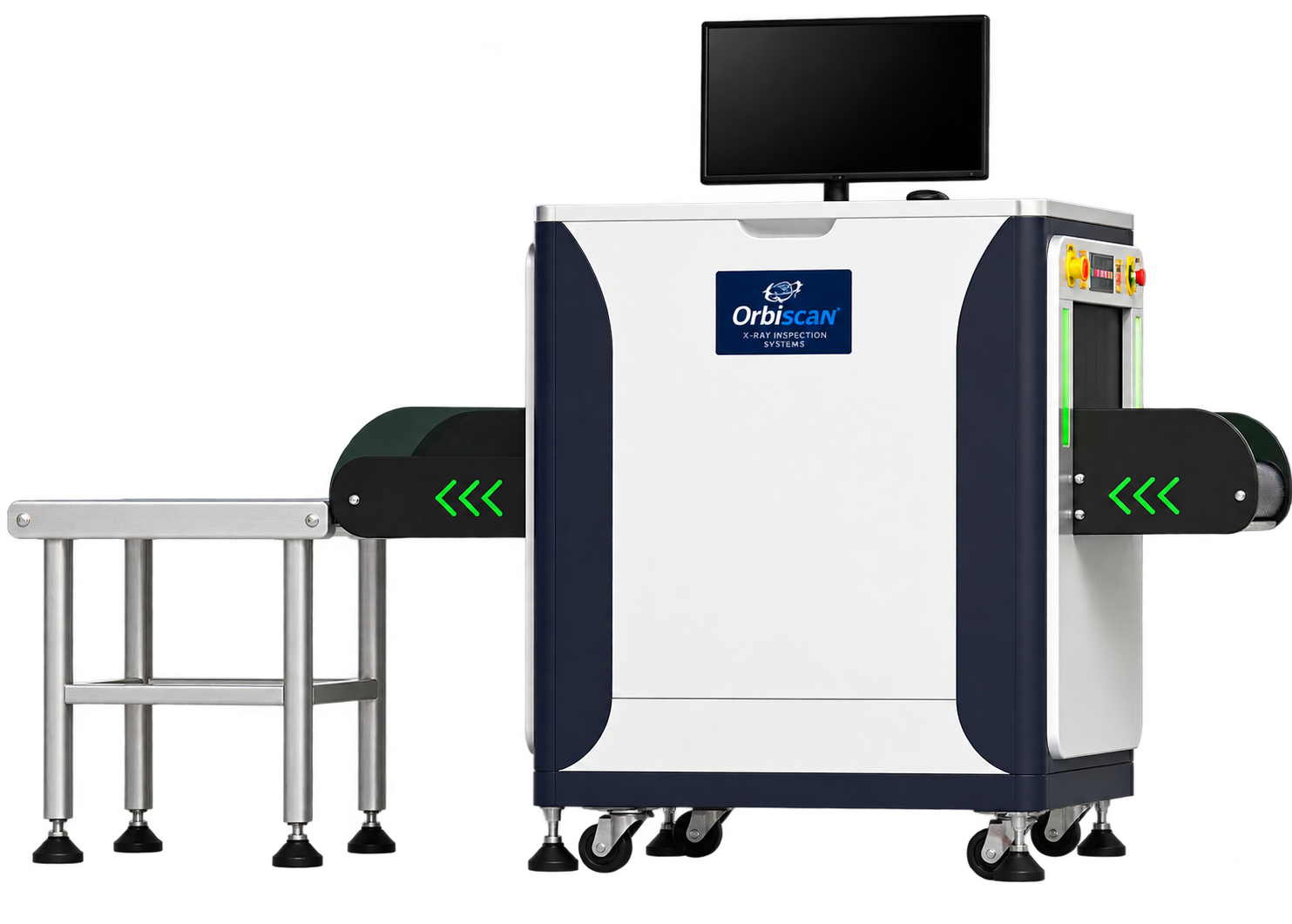

Orbiscan OX-Ai pro X-ray Inspection System

Advanced X-ray Security Screening

The Orbiscan OX-Ai pro is a professional X-ray inspection system designed for reliable security screening in demanding, high-traffic environments. It combines high-definition imaging, intuitive operation, robust construction, and advanced image analysis capabilities to support the inspection of bags, parcels, documents, and personal belongings.

Optional AI-assisted threat recognition can further support operators in identifying suspicious items. The system is suitable for organizations requiring efficient inspection workflows and dependable security screening.

Key Features and Benefits

High-Definition X-ray Imaging

Advanced X-ray imaging software supports detailed image analysis, image enhancement, and inspection of different material types.

Optional AI-Assisted Threat Recognition

Optional AI-assisted recognition helps operators identify potentially suspicious items. The brochure also highlights image analysis assistance for potential explosives and narcotics.

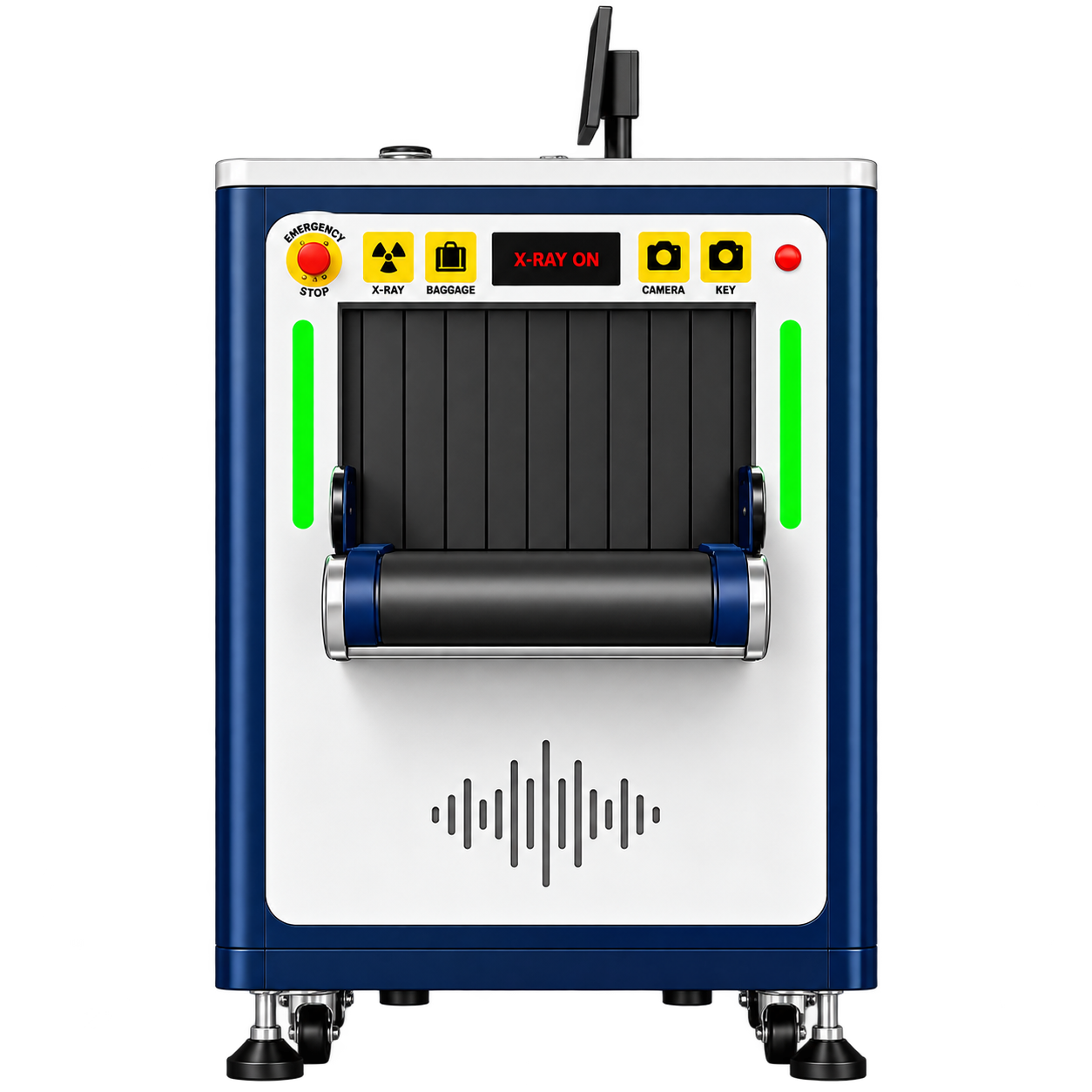

500 × 300 mm Inspection Tunnel

The inspection tunnel accommodates bags, parcels, and other items within the specified tunnel dimensions.

Adjustable X-ray Generator

The system supports tube voltage options of 100 kV, 140 kV, and 160 kV, with adjustable tube current from 0.2 to 1.2 mA.

Bidirectional Scanning

Bidirectional scanning and two-sided energy-saving smart rollers support flexible screening operations.

Advanced Image Enhancement

Image enhancement functions include high, low, and super penetration modes, along with organic and inorganic material display.

Image Storage and Management

The system supports 7-color imaging, 4096 grey levels, an adjustable 64× zoom preview window, and more than 500,000 images for back/forward review.

Security and Monitoring Options

Optional CCTV monitoring and Hikvision camera integration are available. The system also supports image export and SDK integration.

Technical Specifications

Specification	Details
Model	OX-Ai pro
Product Type	X-ray Inspection System
Tunnel Size	500 × 300 mm (W × H)
Product Dimensions	1765 × 800 × 1180 mm
Package Dimensions	1865 × 850 × 1330 mm
Net Weight	280 kg
Gross Weight	330 kg
Power Consumption	Less than 0.5 kW
Power Supply	110–240 VAC, 50/60 ± 3 Hz
Operating Temperature	-20°C to +60°C
Storage Temperature	-30°C to +70°C
Humidity	5%–95%, non-condensing
X-ray Tube Head	Self-contained
Tube Voltage	100 / 140 / 160 kV
Tube Current	0.2–1.2 mA, adjustable
Cooling	Sealed oil and forced-air cooling
Beam Direction	Diagonal from bottom, 80° beam
X-ray Leakage Dose	≤1 μGy/h, measured at 5 cm
Array Detector	L-type photodiode detector array
Noise Level	Less than 55 dB
Maximum Load Weight	150 kg (330 lbs)
Conveyor Speed	Approximately 0.22 m/s
Steel Penetration	13–38 mm; 15–40 mm typical
Conveyor Height	720 mm, including support tray
Wire Resolution	40 AWG (0.0787 mm); 38 AWG typical
Spatial Resolution	Horizontal Φ 1.0 mm; vertical Φ 1.0 mm
Operating System	Windows 7 English version, as stated in brochure
Image Storage	64 GB standard; up to 2 TB optional disk capacity
Display	19-inch Philips monitor, 1280 × 1024
Graphics Memory	256 MB
Computer Host	HESHO brand, Taiwan
Camera / NVR	Hikvision, optional
Roller Material	304 stainless steel rollers, optional
Roller Length	0.6 m at entry and exit, optional

Imaging and Software Capabilities

• Seven-color imaging with 4096 grey levels
• Adjustable 64× zoom preview window
• Image enhancement with high, low, and super penetration modes
• Organic and inorganic material display
• Image zoom and data/time display
• Counters, image recall, and image storage
• User, image, and log management
• Image marking and diagnostics
• Main-screen operation and processing tools
• Custom functions and operator workflow support

Optional Hardware and Configuration

The following options and configurations are identified in the product brochure:

• Hikvision NVR / camera
• Real-time CCTV monitoring
• Additional disk capacity up to 2 TB
• 304 stainless steel entry and exit rollers
• Customized panel, interface, and branding
• SDK integration and platform SDK
• ISB image export
• Custom language support

Applications

Mail and Parcel Screening

Inspection of mail, documents, parcels, and small packages.

Executive Office Security

Screening of bags, parcels, and personal belongings at corporate facilities.

VIP and Diplomatic Security

Inspection of carried items at reception areas and controlled-access locations.

Public Area Security

Screening of bags and carried items in public facilities and high-traffic areas.

High-Risk Event Security

Inspection of bags and personal belongings at events, conferences, and secure venues.

Why Choose the Orbiscan OX-Ai pro?

The Orbiscan OX-Ai pro combines X-ray imaging, advanced image enhancement, flexible scanning, and optional AI-assisted recognition in a professional security inspection system. Its configurable hardware and connectivity options support different operational requirements across corporate facilities, public areas, mailrooms, and event security checkpoints.

Contact Orbiscan for pricing, configuration options, and product availability.
