Description

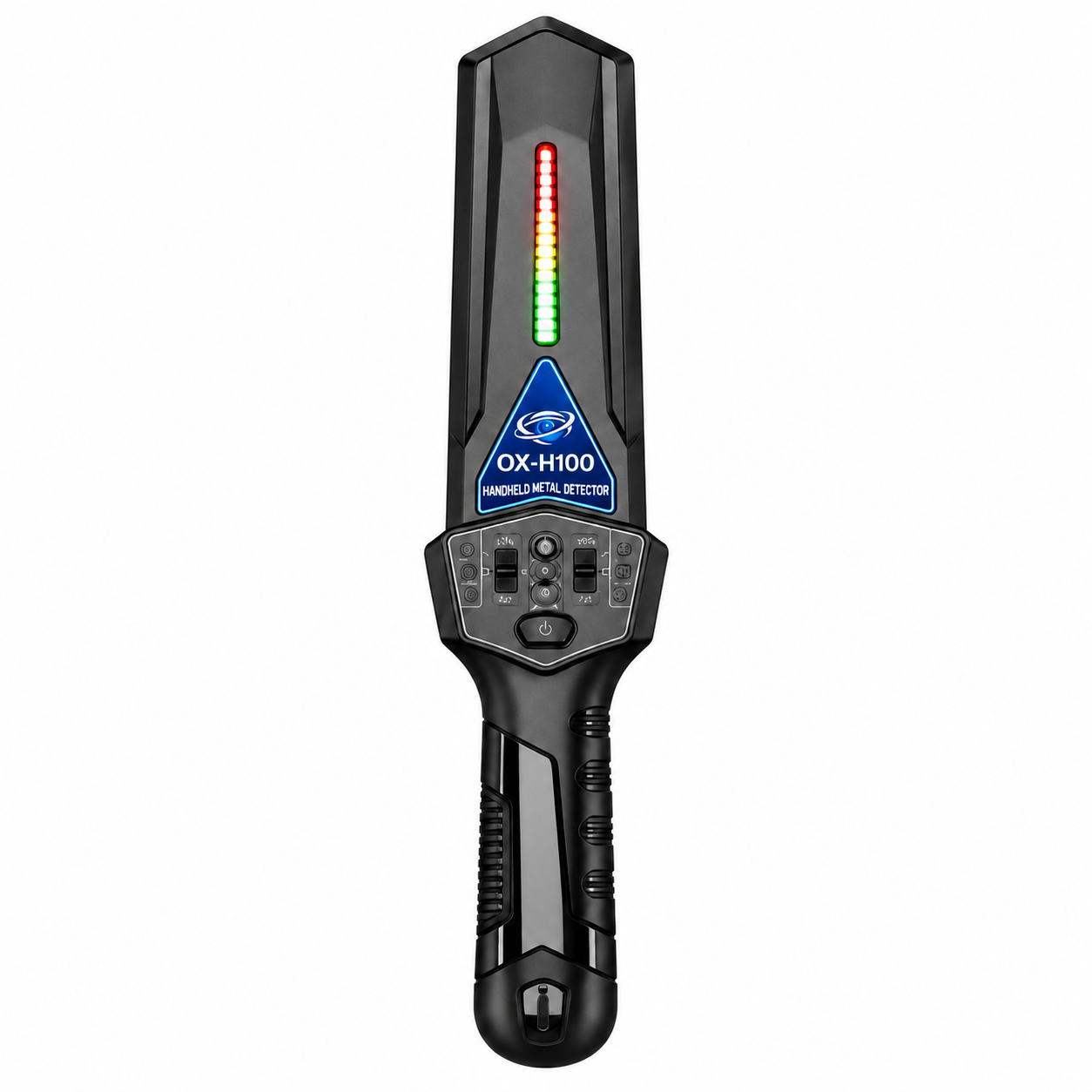

Orbiscan OX-H100 Handheld Metal Detector

Reliable and Accurate Security Screening

The Orbiscan OX-H100 Handheld Metal Detector is a professional security screening device designed to help identify metallic objects during security checks. Its omnidirectional detection coil, adjustable sensitivity levels, and multiple alert modes support efficient screening in security-sensitive environments.

The device detects ferrous and non-ferrous metals and uses an LED visual indicator, buzzer, and vibration alerts to notify the operator when metal is detected.

Key Features and Benefits

High-Sensitivity Metal Detection

Provides high, medium, and low sensitivity settings to accommodate different screening requirements.

Ferrous and Non-Ferrous Detection

Detects a wide range of metallic objects and alloys.

Multiple Alert Modes

Supports audio alerts, LED visual indicators, vibration, and mute mode for different operating environments.

Extended Battery Backup

Offers up to 40 hours of continuous detection with the specified battery configuration.

IP65 Protection

Designed with an IP65 protection rating for added protection against dust and water exposure.

Optional Charging Accessories

Supports an optional charging dock. Rechargeable batteries, a smart charging stand, and an intelligent charging base tray are listed as optional accessories in the product brochure.

Technical Specifications

Specification	Details
Model	OX-H100
Product Type	Handheld Metal Detector
Metal Detection	Ferrous and non-ferrous objects
Detection Source	Omnidirectional coil
Sensitivity	High, Medium, Low
Detection Bands	Automatic tuning for a wide range of metals and alloys
Audio Alert	Buzzer
Visual Alert	LED indicator
Alarm Modes	Beep, Vibration, Mute
Object Intensity Alarm	Multicolor LED intensity indicator
Power Supply	2 × 1.5V AA alkaline batteries or rechargeable battery
Battery Backup	Up to 40 hours of continuous detection
Battery Protection	Reverse polarity protection
IP Rating	IP65
Charging Dock	Supported
Operating Temperature	-35°C to +75°C
Operating Humidity	95% or less, non-condensing
Dimensions	360 × 80 × 41 mm
Weight	Approximately 220 g, excluding battery
Certifications	CE, FCC, RoHS

Optional Accessories

• Rechargeable battery

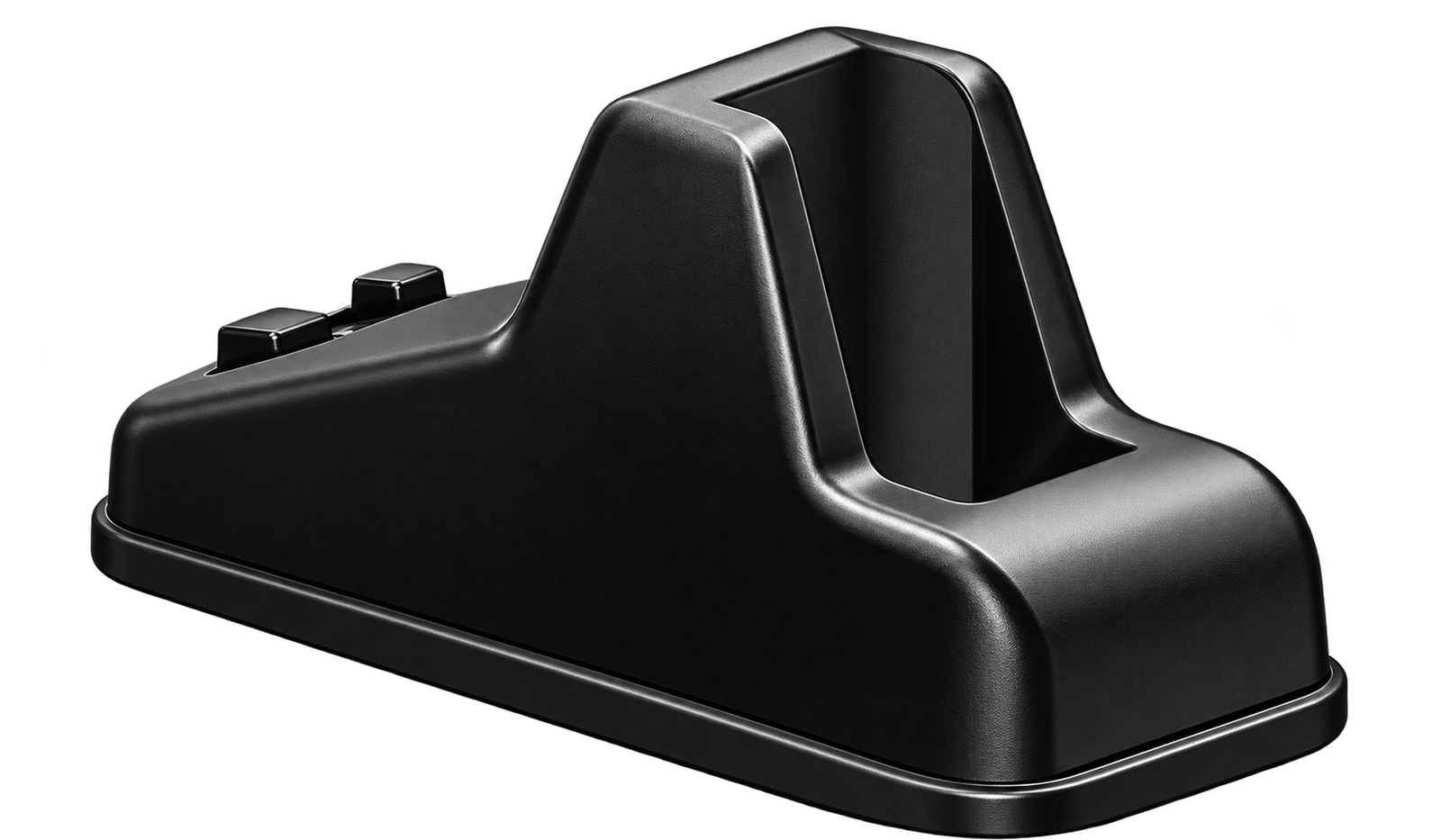

• Smart charging stand

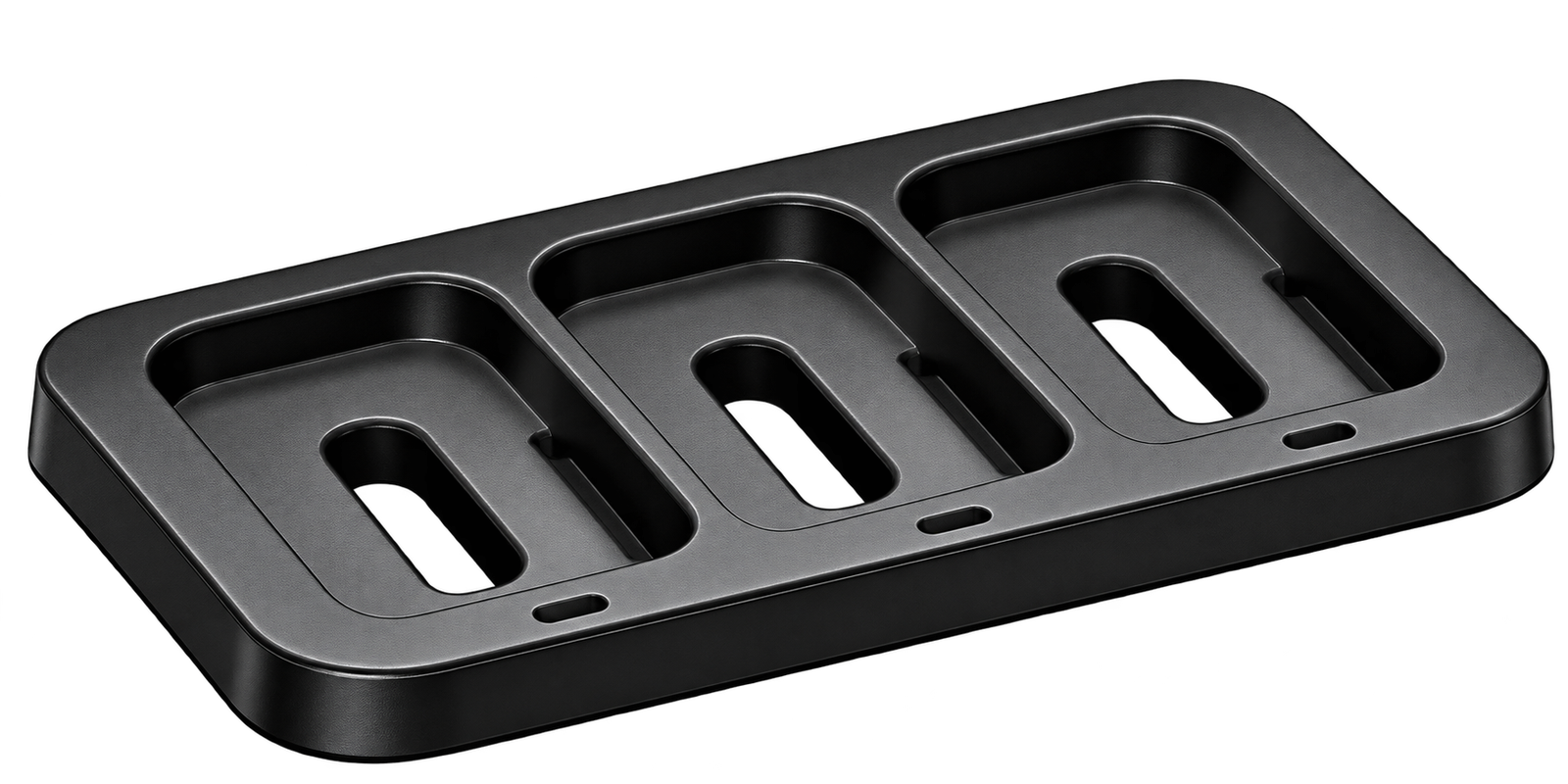

• Intelligent charging base tray

Applications

The Orbiscan OX-H100 can be considered for security screening at:

• Office and commercial building entrances
• Event and venue security checkpoints
• Access control points
• Institutional and facility security checkpoints

Choose Orbiscan OX-H100 for Security Screening

The Orbiscan OX-H100 combines adjustable sensitivity, multiple alert options, extended battery backup, and IP65 protection in a handheld design. Contact us for product availability, pricing, and accessory options.
