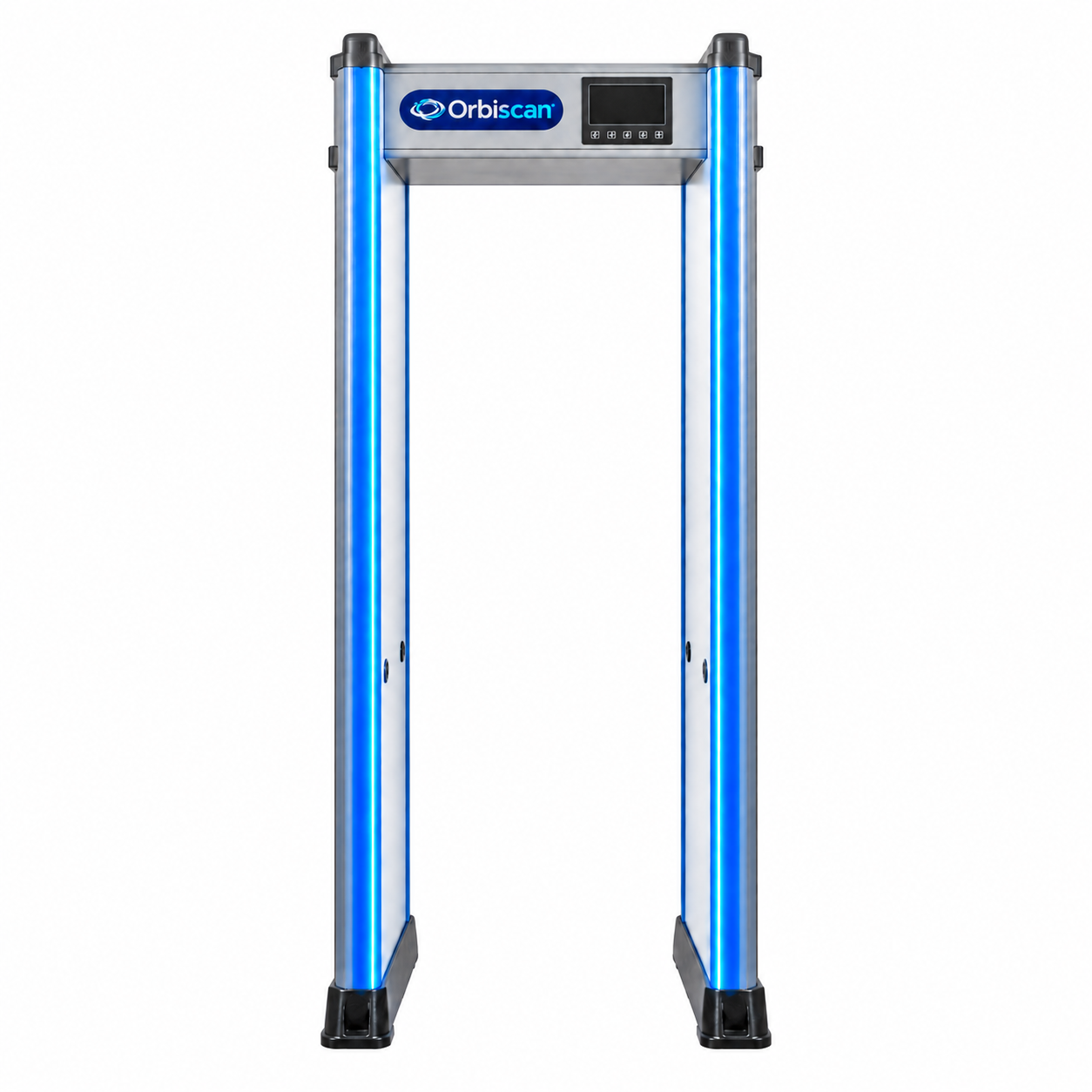

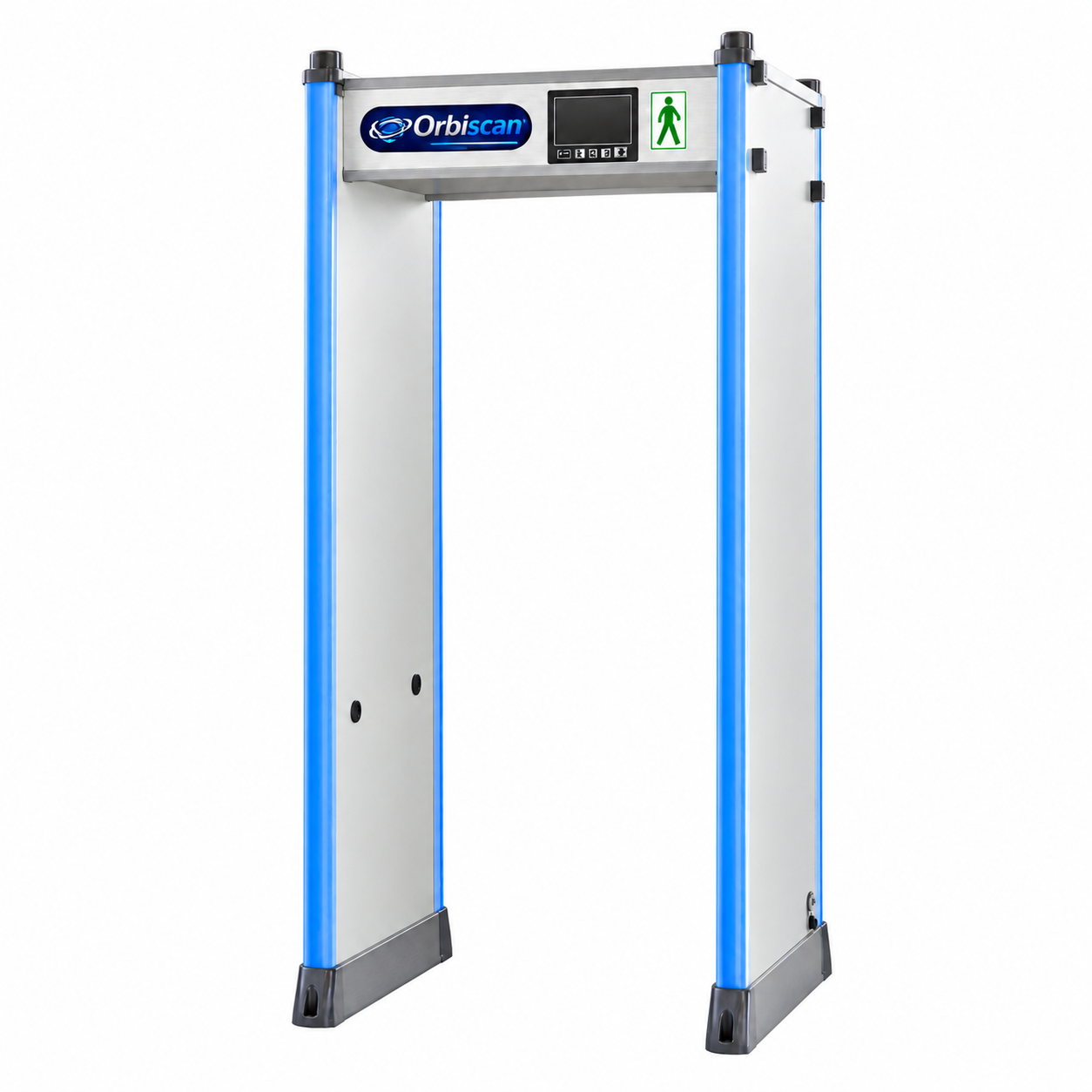

Orbiscan OX-45ultra Walk Through Metal Detector
The Orbiscan OX-45ultra is a walk-through metal detector designed for security screening in public and controlled-access environments. It combines 45 independent detection zones, 300 adjustable sensitivity levels, and Digital Signal Processor (DSP) technology to support accurate metal detection.
Key Features
-
45 Independent Detection Zones: Pinpoints detected metal objects across the left, center, and right sides of the body, from head to toe.
-
300 Sensitivity Levels: Adjustable sensitivity from 0 to 299 to accommodate different screening requirements.
-
DSP Signal Processing: Supports sensitivity, noise immunity, metal discrimination, and detection uniformity.
-
Anti-Interference Performance: Advanced analogue and digital filtering helps reduce electrical interference. The datasheet states that the detector can operate as close as 30 cm to an X-ray system.
-
100 Selectable Operating Frequencies: Multiple channels and operating frequencies support compatibility with existing security checkpoints.
-
Pacing Lights: Wait and Proceed indicators help guide people through screening.
-
Programmable Memory: Stores settings for different operating environments.
-
Tamper-Proof Settings: Two-level access-code protection helps prevent unauthorized setting changes.
-
Optional Battery Backup: An optional battery pack provides approximately 6–10 hours of backup.
-
CE and RoHS: Listed certifications in the product datasheet.
Technical Specifications
| Specification | Details |
|---|---|
| Model | OX-45ultra |
| Detection zones | 45 independent zones |
| Sensitivity | 300 adjustable levels |
| Passage dimensions (W × H × D) | 760 × 2,010 × 580 mm |
| External dimensions (W × H × D) | 900 × 2,230 × 580 mm |
| Power consumption | 40 W ±10% |
| Power supply | AC 110–240 V ±20%, 50/60 Hz |
| Working temperature | −20°C to +70°C |
| Storage temperature | −40°C to +70°C |
| Humidity | 5%–95%, non-condensing |
| Weatherproofing | IP43 listed |
| Optional battery backup | 6–10 hours |
| Net / gross weight | 75 kg / 78 kg |
| Warranty | 2 years, limited parts and labour |
Applications
The Orbiscan OX-45ultra is suitable for security screening at airports, courthouses, prisons, hotels, railway and transit stations, schools, special events, and other facilities requiring controlled access.
Its modular design allows assembly of three main sections using eight screws and three internal cable connections, according to the product datasheet.
