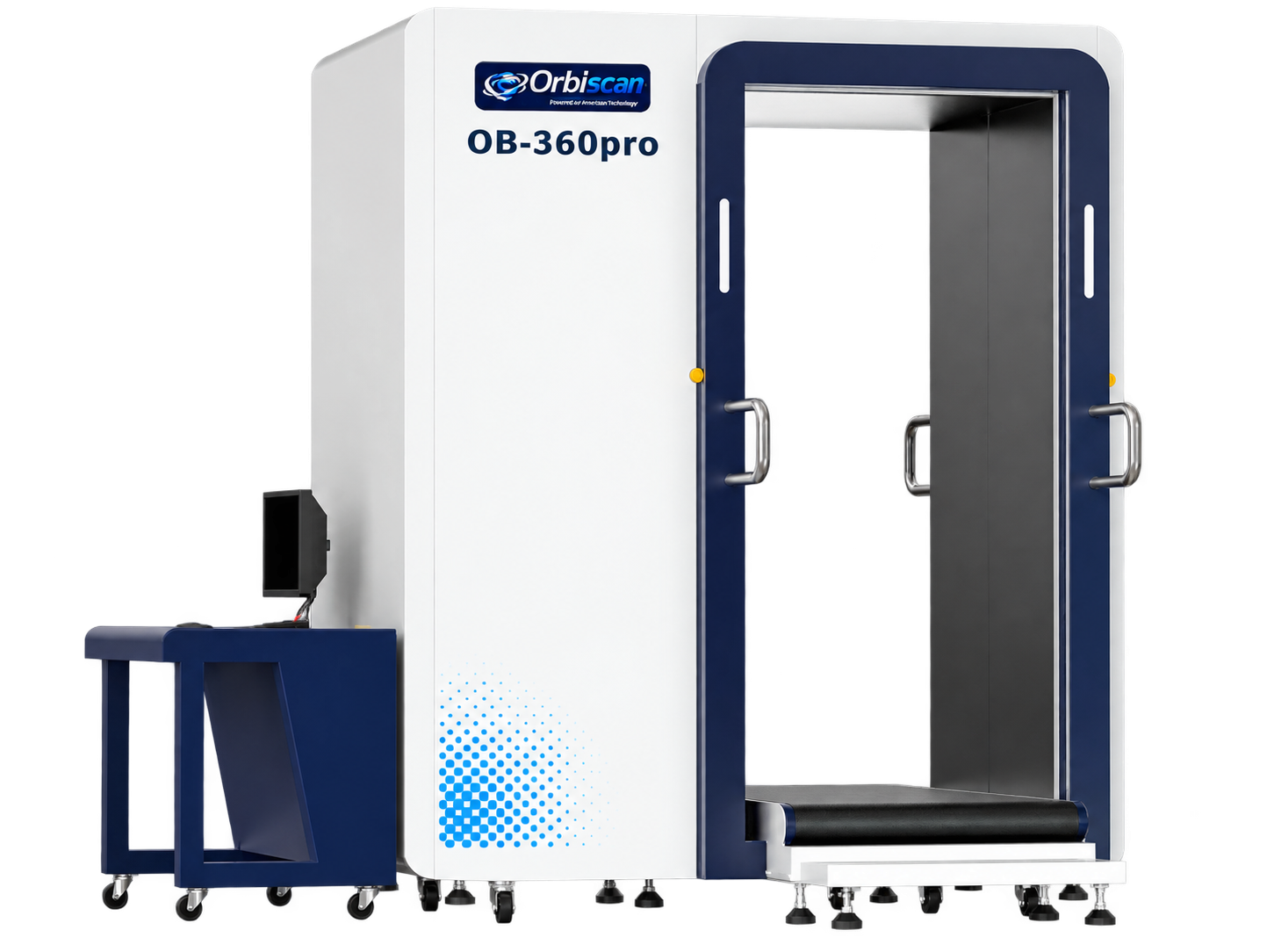

Orbiscan OB-360pro Transmission X-Ray People Screening System
Full-Body Security Screening
The Orbiscan OB-360pro is a transmission X-ray people screening system designed to assist security personnel with full-body inspection and the detection of concealed items. It is intended for security checkpoints where personnel screening and controlled access are required.
The system presents a full-body image in a single inspection pass and provides image review functions to support operator assessment.
Key Features of the OB-360pro
Full-Body Screening
The system produces a full-body image during a single inspection pass, supporting security screening at designated checkpoints.
Concealed Object Detection
Designed to assist in identifying items concealed internally or externally on the body.
Rapid Scanning
The supplied product reference lists a scan time of less than 7 seconds. Actual performance should be confirmed with the manufacturer.
Low-Dose Inspection
The supplied reference lists an inspection dose of less than 2.5 µSv per inspection. Confirm the applicable radiation-safety specifications before purchase or deployment.
Enhanced Image Review
Zoom, filtering, and image enhancement functions help operators review screening images.
High-Resolution Detection
The reference document specifies high-resolution semiconductor detector lines and fan-beam line-scan image acquisition.
Technical Specifications
| Specification | Reference Value |
|---|---|
| Technology | Low-dose transmission X-ray |
| Screening | Full body in one pass |
| Tunnel opening | 2000 × 900 mm |
| Scan time | Less than 7 seconds |
| Startup time | Less than 2 minutes |
| Belt speed | Approximately 0.16 m/s |
| Dimensions (L × H × W) | 2760 × 2530 × 1960 mm |
| Weight | 880 kg |
| Load capacity | More than 220 kg |
| Power consumption | Less than 0.9 kVA |
| Power supply | 220 VAC, 50/60 Hz |
| Operating temperature | 0°C to 40°C |
| X-ray generator | 60–140 kV, hermetically sealed oil bath |
| Wire detectability | 32 AWG standard; 34 AWG typical |
| Cooling | Oil-cooled, closed circuit |
| Inspection dose | Less than 2.5 µSv per inspection |
| Duty cycle | 100% |
| Image acquisition | Fan-beam line scan |
| Image output | Full-body still image |
| Grey levels | 65,536 |
| Display | Black-and-white TFT monitor |
| Image evaluation | Zoom, filters, and enhancement |
| Scan method | Person moved through beam |
| Physical format | Open tunnel / in-line screening |
Optional Configuration
The supplied reference lists the following optional configuration items:
- Image storage and loading
- Networked data and image management
- Database connectivity
- Remote operator review
- Operator table and programmable keys
Availability of these options should be confirmed for the requested configuration.
Applications
The supplied product reference identifies the following application areas:
- Correctional facilities: Contraband screening and controlled-access checks.
- Customs and border crossings: Screening for concealed items at checkpoints.
- Aviation security: Personnel security screening applications.
- High-security locations: Inspection at restricted entry points.
Request Product Information
Contact Orbiscan to confirm the OB-360pro configuration, technical specifications, installation requirements, and availability.
Technical note: Specifications in this description are transcribed from the supplied product reference and require confirmation for the OB-360pro before publication.
